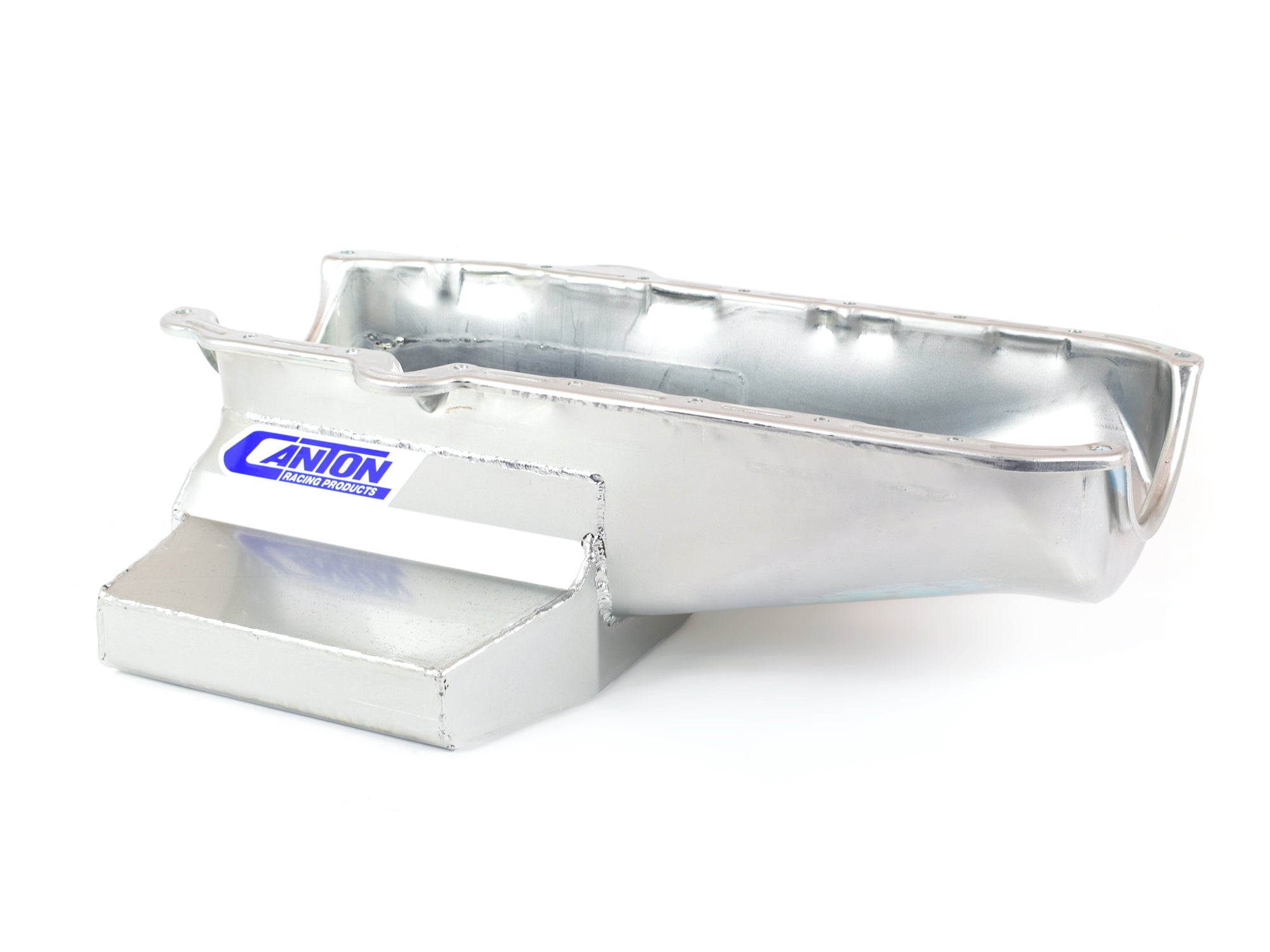

Canton 11-122T Oil Pan Small Block Chevy 10" Circle Track Long Sump G Body

Out of stock
SKU: BGTF-11-122T
$580.80
Flat-rate shipping applies to standard orders. Oversized items requiring freight truck or air freight will be billed separately after purchase.

Product details

  • SKU BGTF-11-122T

Stock Notice:
Our inventory is updated daily, but availability may fluctuate throughout the day as orders are processed. If a product shows Out Of Stock, please contact us at info@jdr-partsbarnandsalesllc.com. We’ll be happy to provide lead times or availability details from the vendor or manufacturer.

Shipping Notice:

Shipping available only within the continental U.S. See full policy

Description
This competition wet sump is for '86 and newer Small Block Chevys with one piece seal. It is designed for x-member clearance in street stock and late models using ?78 and newer G body GM chassis (metric chassis). It has a 7" deep, 15" wide, 10-1/2" long sump and a 7 quart system capacity. Requires one of our pickups.
  • 7 qt System Capacity
  • 3.75" Stroke Clearance
  • Six Trap Door Baffles & Three Runners
  • Crank Scraper
  • Bolt in Slosh Baffle
  • Built in Windage Tray
  • 1/2” NPT Temperature Bung
  • Provison for our Pan Mounted Dipstick
  • Magnetic Drain Plug

Attributes:

  • Brand Name: Canton
  • GTIN: 00887753711212
  • Baffled: Yes
  • Capacity: 7 Quart System Capacity
  • Crank Scraper Included: Yes
  • Dipstick Port: Yes
  • Drain Plug Included: Yes
  • Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
  • Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
  • Feature 2: Bolt On Slosh Baffle For Oil Control
  • Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
  • Feature 4: Reduces Crank Windage And Saves Horsepower
  • Feature 5: Provision for Canton Pan Mounted Dipstick
  • Feature 6: 1/2 NPT Temp Sensor Bung
  • Feature 7: Magnetic Drain Plug
  • Finish: Silver Plating
  • Gasket or Seal Included: No
  • Hardware Included: No
  • Kicked Out: Yes
  • Material: 16 Gauge Steel
  • Pickup Included: No
  • Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
  • Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
  • Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
  • Recommended Accessory 4: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
  • Recommended Accessory 5: 20-077 - Press In Pickup for M10552 & M10555 Pump
  • Recommended Accessory 6: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
  • Recommended Accessory 7: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
  • Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
  • Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Stoke: 3.75 inches
  • Windage Tray Included: Yes

Extended Information:

  • Country of Origin: US
  • Emissions : CARB Eligible
  • Life Cycle Status: Discontinued

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24.5 x 16.25 x 9.5 inches
  • Weight: 20 POUNDS
